HIU25DCBE500 = 0-500psi (0-35kg), 63mm (2.5”)

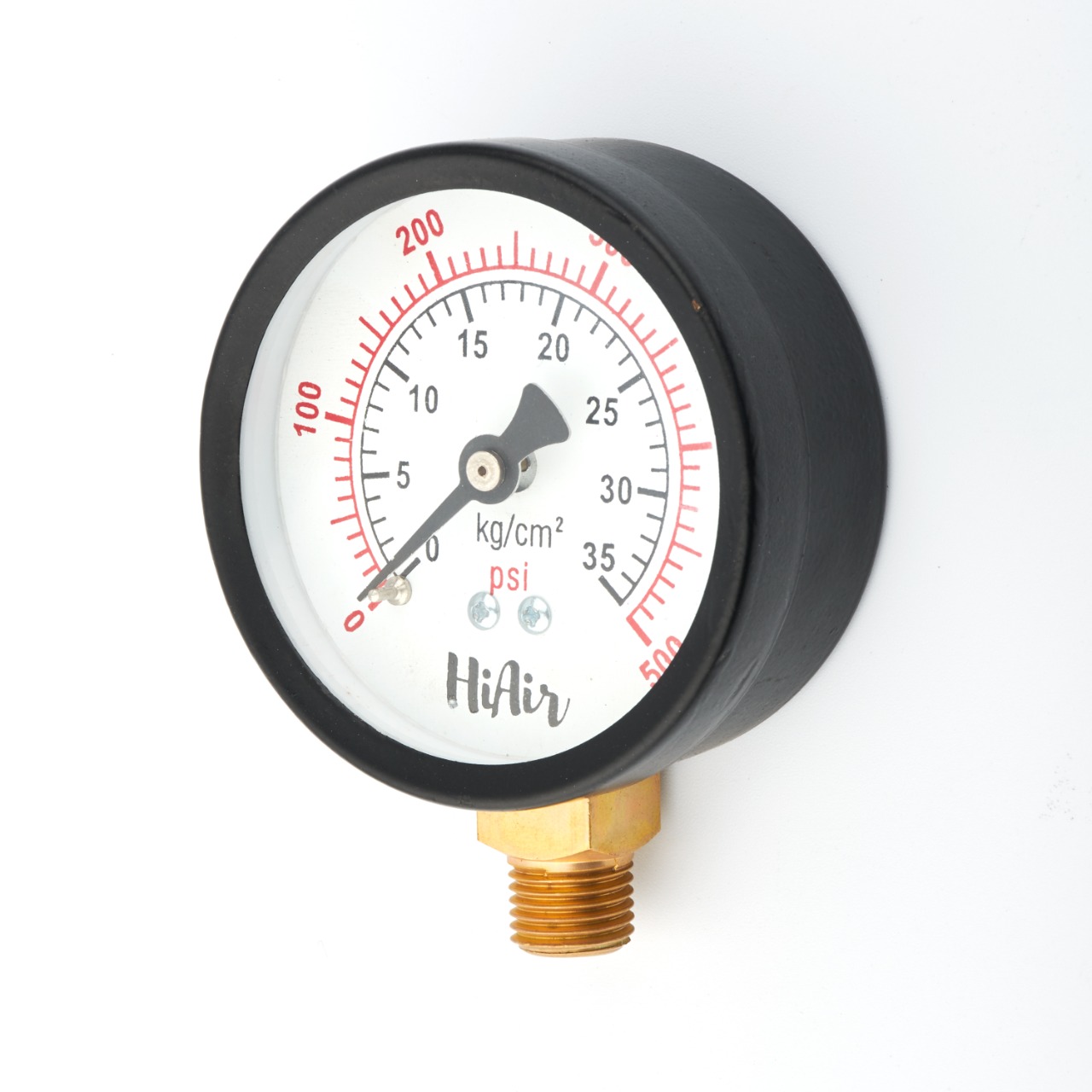

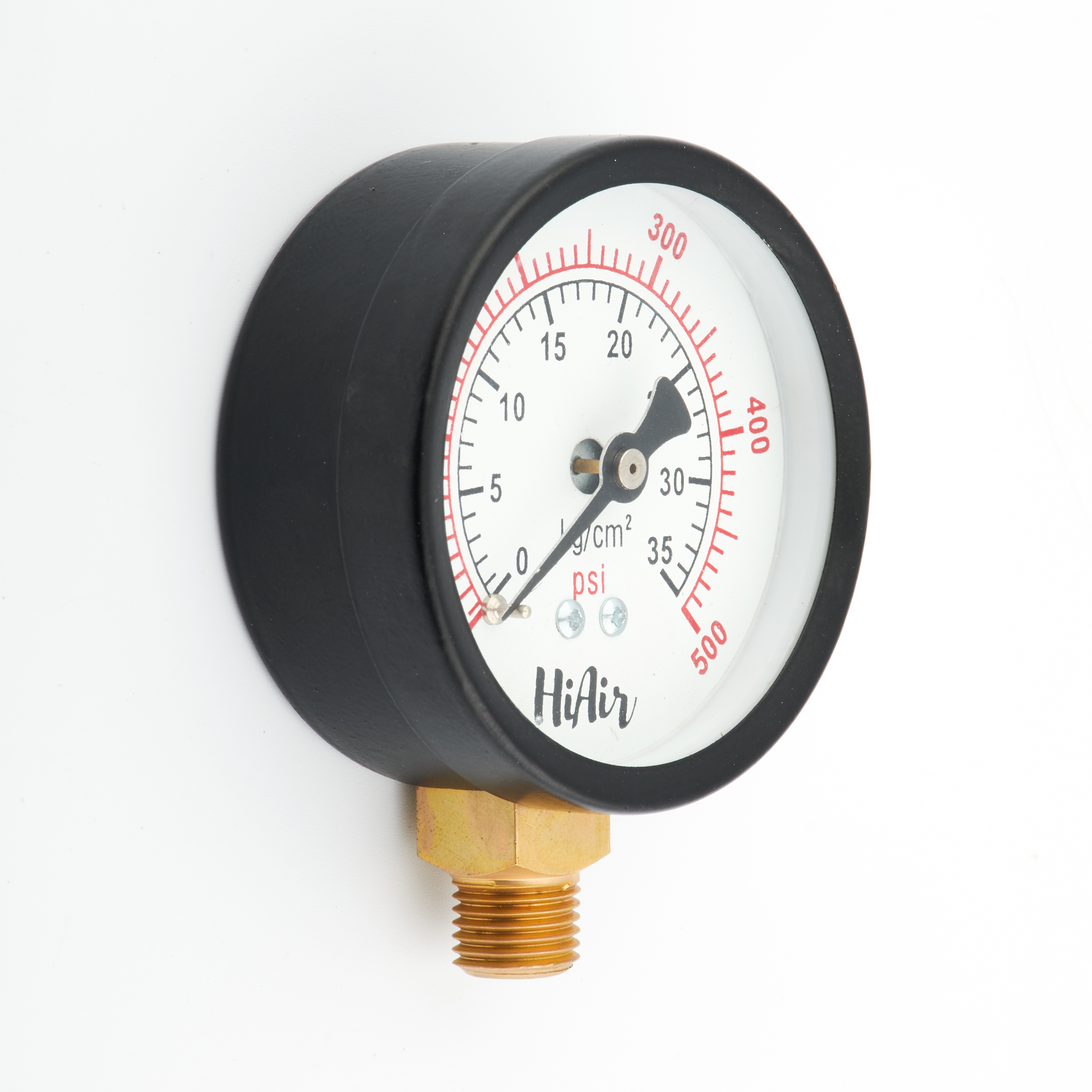

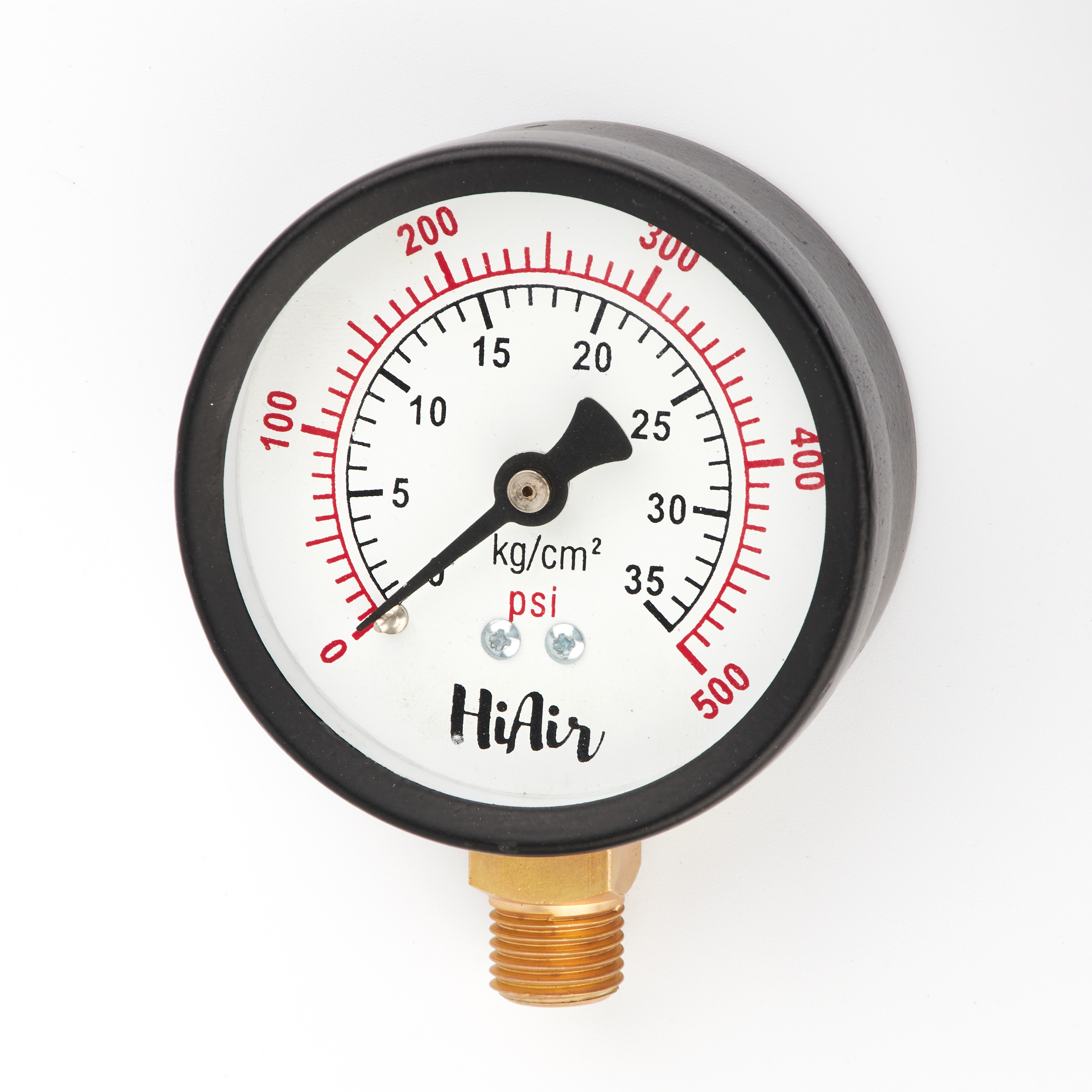

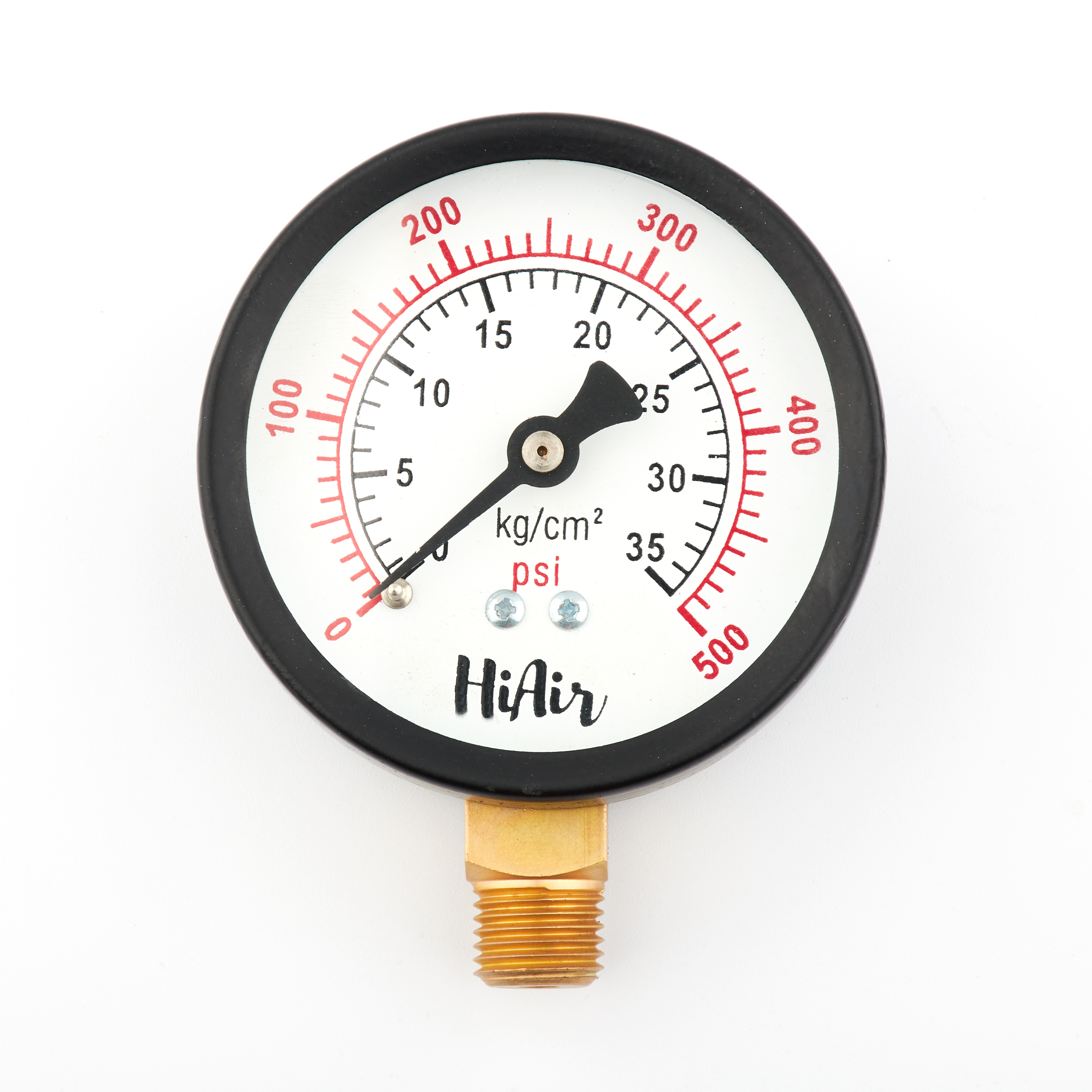

HIU25500 = HiAir Utility Pressure Gauge 0-500psi (0-35kg), 63mm (2.5inch)
With years of industry experience we are engaged in 500psi (35kg) Pressure Gauges of premium quality and designed for long and reliable service and we are offering a wide range of such 63mm (2.5Inch) Pressure Gauges.
1. Pressure Range | 0-500psi, 0-35 kg/cm2 |
2. Dial size | 63mm, 2.5” |
3. Connection | 1/4 BSP |
4. Type of mounting | Bottom |
5. Socket material | Brass |
6. Joints | Soldering |
7. Movement | Brass OR Mild Steel (MS) |
8. Dial | White Plastic OR Aluminum White Coated (White Black & Red Printing) |
9. Point | Aluminum Black Coated |
10.Case | Mild Steel (MS) Black Coated |
11.Window | Plan & Clean Glass |
12.Sealing Gasket | White Plastic Ring |
13.Accuracy | ±3% In Full Scale |
