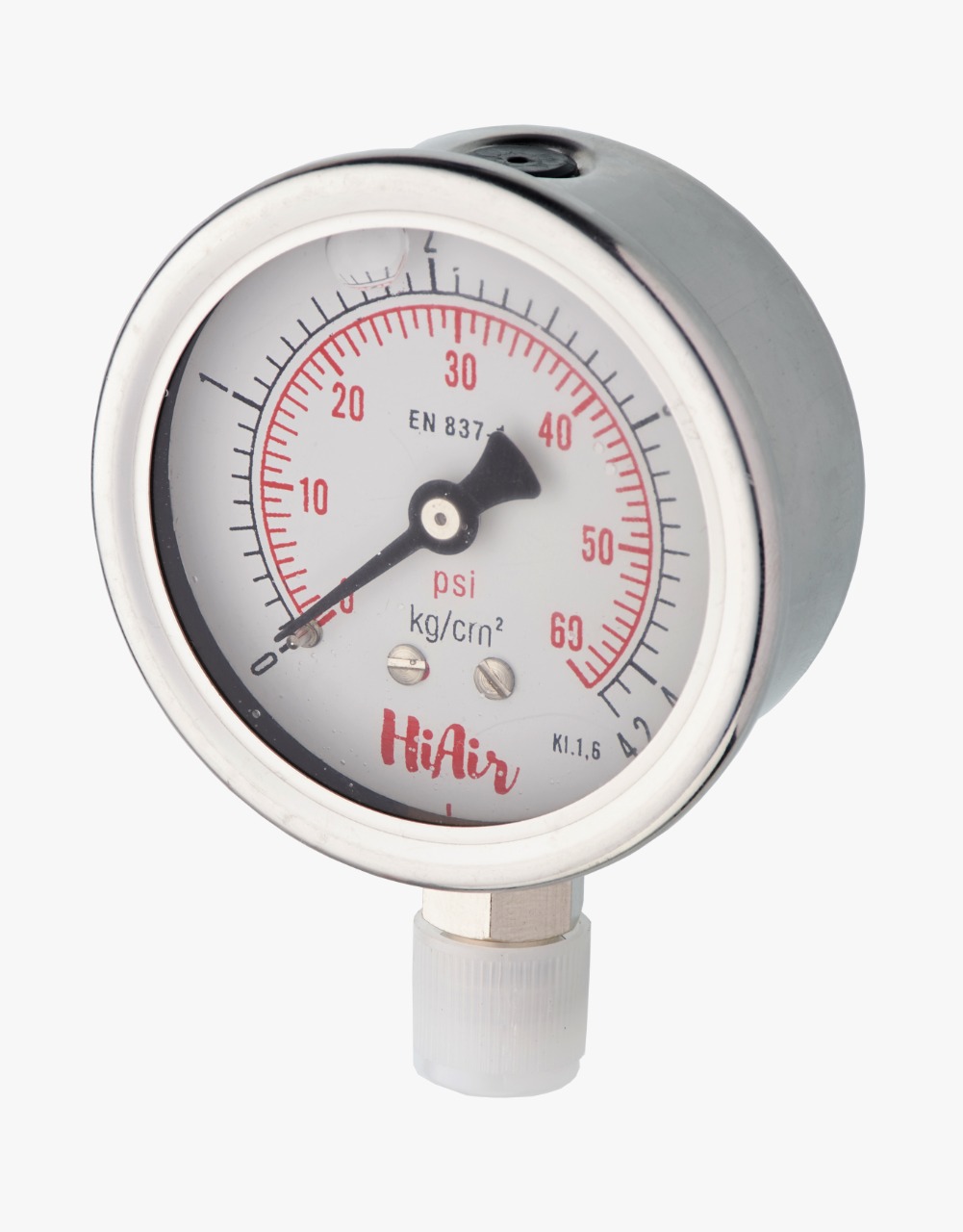

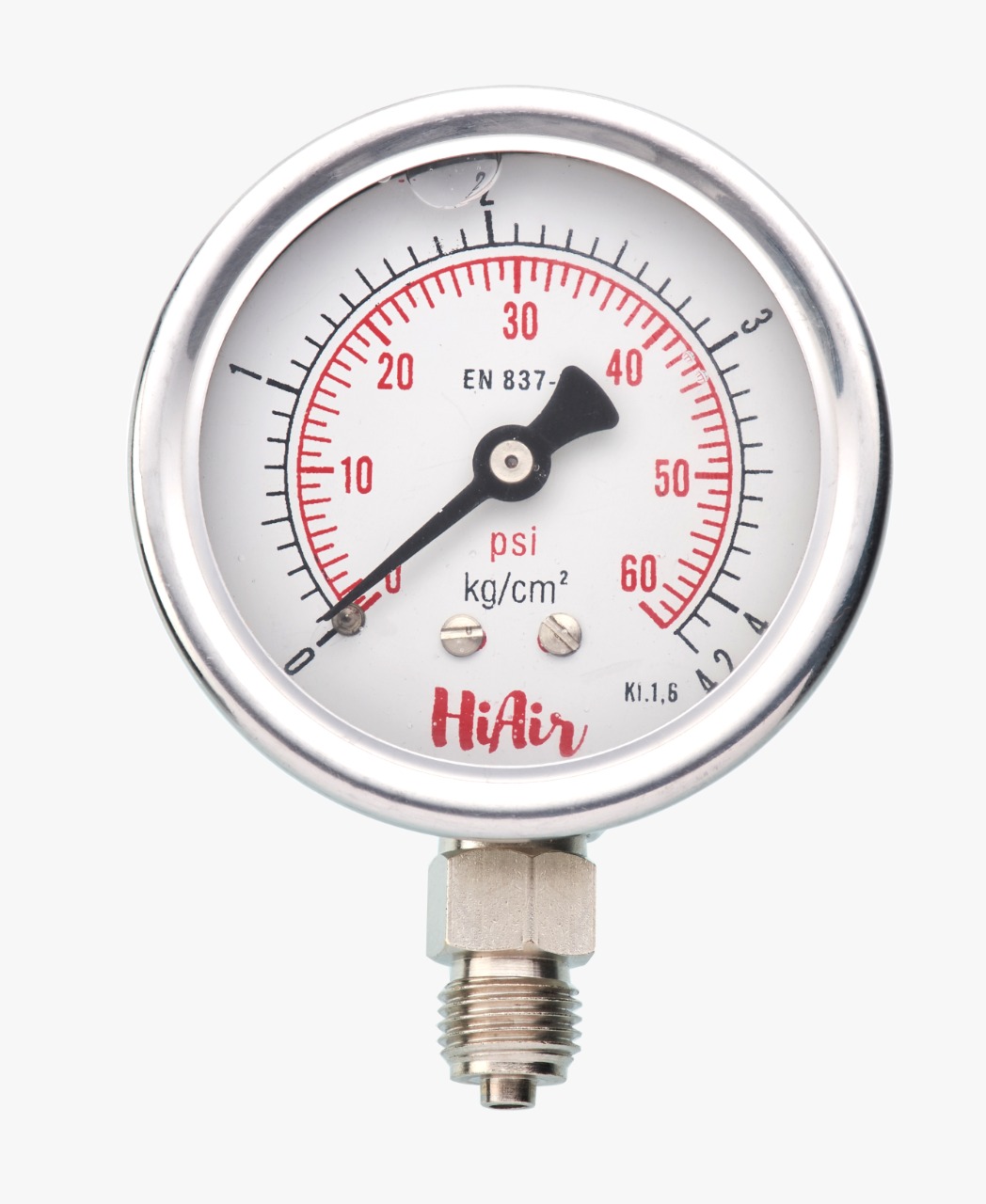

HIGL25BC60 = 0-60psi (0-4kg), 63mm (2.5”)
HIGL2560 = Hiair Glycerin Filled 0-60psi (0-4kg) 63mm (2.5”)
| 1. Pressure Range | 0-60psi, 0-4 Kg/Cm2 |
| 2. Dial size | 63mm (2.5inch) |
| 3. Connection | 1/4 BSP |
| 4. Type of mounting | Bottom Connection Direct Mounting, Back Connection Direct Mounting, Bottom Connection Surface Mounting, Back Connection Panel Mounting, Back Connection Bracket Mounting |
| 5. Socket material | Brass (SS Plating) |
| 6. Joints | Soldering & Argon Welded / Brass Silver Brazed |
| 7. Movement | Brass |
| 8. Dial | Aluminum White Coated (With Black & Red Printing) |
| 9. Point | Aluminum Black Coated |
| 10.Case | SS 304, Crimp Type |
| 11.Window | Acrylic / Polycarbonate (PC) |
| 12.Sealing Gasket | Neoprene Rubber |
| 13.Case Filling Fluid | Glycerin |
| 14.Accuracy | ±2% In Full Scale |
